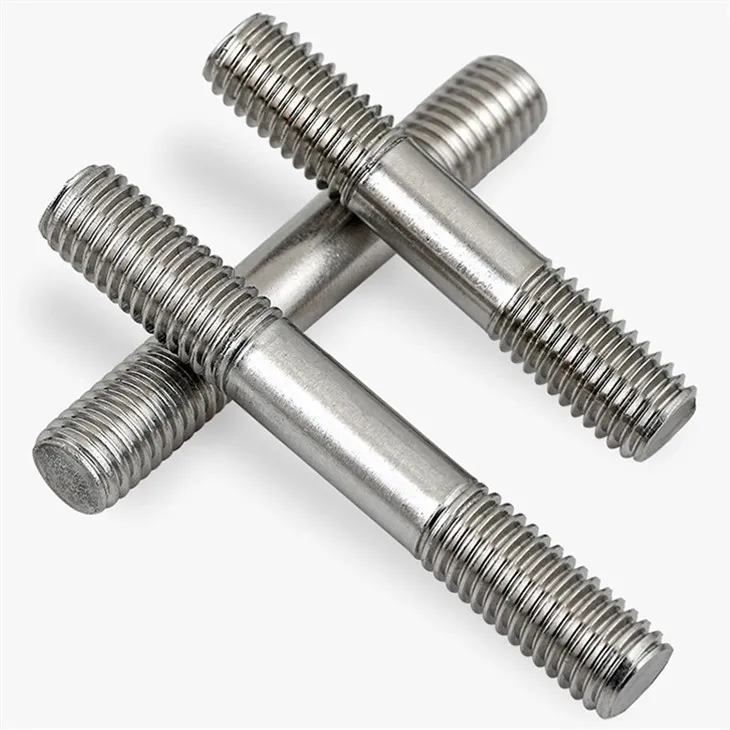

Clamping Hom Stud Bolts
Peb Clamping Hom Stud Bolts yog tsim nyob rau hauv nominal diameters li ntawm 1/8 "- 3" (M3 - M80). Peb muab cov fasteners nyob rau hauv ob qho tib si USCS / Imperial thiab metric qhov ntau thiab tsawg.
- Khoom Taw qhia
Kev piav qhia
Peb Clamping Hom Stud Bolts yog tsim nyob rau hauv nominal diameters li ntawm 1/8 "- 3" (M3 - M80). Peb muab cov fasteners nyob rau hauv ob qho tib si USCS / Imperial thiab metric qhov ntau thiab tsawg.
Peb muaj kev tshaj lij thiab muaj peev xwm ntau yam xws li engineering, R & D, prototyping, kev tsim khoom, kev ua tiav thiab kev sim. Peb tag nrho cov ntaub ntawv yog los ntawm cov feem ntau reputable thiab meej foundries nyob rau hauv lub ntiaj teb no. Peb tuav cov khoom lag luam ntau lab daus las hauv peb cov khoom lag luam warehouse, uas ua rau peb xaiv, pob thiab ua kom koj cov stud bolt xaj kom sai.
Peb zoo siab los pab peb cov neeg muag khoom, EPCs, OEM thiab MRO cov neeg siv khoom thoob ntiaj teb.
Peb Clamping Hom Stud Bolts tau raws li ASTM, ANSI, ASME, SAE, API, NAS, AN, MS, NACE, ISO, DIN, thiab KS cov qauv.
Nta
1. Clamping design: Clamping Type Stud Bolts feature clamping design, siv cov txiv ntseej los yog cov khoom siv clamping kom ruaj thiab ceev cov khoom siv threaded.
2. Ntau qhov ntau thiab tsawg thiab specifications: Cov khoom muaj ntau qhov ntau thiab tsawg thiab specifications kom haum raws li qhov sib txawv daim ntawv thov scenarios thiab xov yuav tsum tau.
3. Cov khoom siv muaj zog: feem ntau yog ua los ntawm cov hlau tsis muaj zog lossis cov hlau tsis muaj zog, muab lub zog tensile zoo thiab corrosion kuj.
4. High clamping quab yuam: Cov khoom tsim clamping muab siab clamping quab yuam, ua kom muaj kev ruaj ntseg ntawm cov khoom siv threaded.
5. Ib qho yooj yim installation: yog tsim los rau kev yooj yim installation thiab hloov, txhim kho installation efficiency.
6. Reversible los ua ke: Cov khoom tsim tso cai rau kev rov qab los ua ke, ua kom yooj yim rau kev kho thiab disassembly lub hom phiaj.
7. Kev siv ntau yam: Cov khoom siv dav siv hauv kev lag luam xws li kev siv tshuab, kev tsim kho, tsheb, thiab lwm yam, rau kev sib txuas thiab kev ruaj ntseg threaded Cheebtsam.
8. Ntau yam khoom siv: Cov khoom muaj ntau yam khoom siv, xws li carbon steel, alloy steel, stainless hlau, thiab lwm yam, kom ua tau raws li qhov sib txawv ntawm ib puag ncig thiab kev thov.
9. Hnav tsis kam: Pom zoo hnav tsis kam, haum rau kev siv mus sij hawm ntev thiab qhov chaw siab.
10. Kev ua raws li cov qauv: Cov khoom ua raws li cov qauv kev lag luam thoob ntiaj teb thiab kev lag luam, ua kom ntseeg tau zoo thiab ua haujlwm zoo.
Specifications
|
|
|||||||
| Dimensions Rau Clamping Hom Studs | |||||||
| Nominal Loj | D | Bmin | Umax= 2 Xov Paj | ||||
| Txoj kab uas hla | Txiv ntseej kawg yam tsawg kawg nkaus xov ntev | ||||||
| L Tsawg dua lossis sib npaug li 10 | 10 | L >16 | UNC Xov Xwm | UNF Xov Xwm | 8 UN Xov | ||
| 1/4 | 0.2500 | 0.750 | 1.000 | 1.500 | 0.100 | 0.071 | … |
| 5/16 | 0.3125 | 0.875 | 1.125 | 1.625 | 0.111 | 0.083 | … |
| 3/8 | 0.3750 | 1.000 | 1.250 | 1.750 | 0.125 | 0.083 | … |
| 7/16 | 0.4375 | 1.125 | 1.375 | 1.875 | 0.143 | 0.100 | … |
| 1/2 | 0.5000 | 1.250 | 1.500 | 2.000 | 0.154 | 0.100 | … |
| 9/16 | 0.5625 | 1.375 | 1.625 | 2.125 | 0.167 | 0.111 | … |
| 5/8 | 0.6250 | 1.500 | 1.750 | 2.250 | 0.182 | 0.111 | … |
| 3/4 | 0.7500 | 1.750 | 2.000 | 2.500 | 0.200 | 0.125 | … |
| 7/8 | 0.8750 | 2.000 | 2.250 | 2.750 | 0.222 | 0.143 | … |
| 1 | 1.0000 | 2.250 | 2.500 | 3.000 | 0.250 | 0.167 | … |
| 1-1/8 | 1.1250 | 2.500 | 2.750 | 3.250 | 0.286 | 0.167 | 0.250 |
| 1-1/4 | 1.2500 | 2.750 | 3.000 | 3.500 | 0.286 | 0.167 | 0.250 |
| 1-3/8 | 1.3750 | 3.000 | 3.250 | 3.750 | 0.333 | 0.167 | 0.250 |
| 1-1/2 | 1.5000 | 3.250 | 3.500 | 4.000 | 0.333 | 0.167 | 0.250 |
| 1-5/8 | 1.6250 | 3.500 | 3.750 | 4.250 | … | … | 0.250 |
| 1-3/4 | 1.7500 | 3.750 | 4.000 | 4.500 | 0.400 | … | 0.250 |
| 1-7/8 | 1.8750 | 4.000 | 4.250 | 4.750 | … | … | 0.250 |
| 2 | 2.0000 | 4.250 | 4.500 | 5.000 | 0.444 | … | 0.250 |
| 2-1/8 | 2.2500 | 4.750 | 5.000 | 5.500 | 0.444 | … | 0.250 |
| 2-1/2 | 2.5000 | 5.250 | 5.500 | 6.000 | 0.500 | … | 0.250 |
| 2-3/4 | 2.7500 | 5.750 | 6.000 | 6.500 | 0.500 | … | 0.250 |
| 3 | 3.0000 | … | 6.500 | 7.000 | 0.500 | … | 0.250 |
